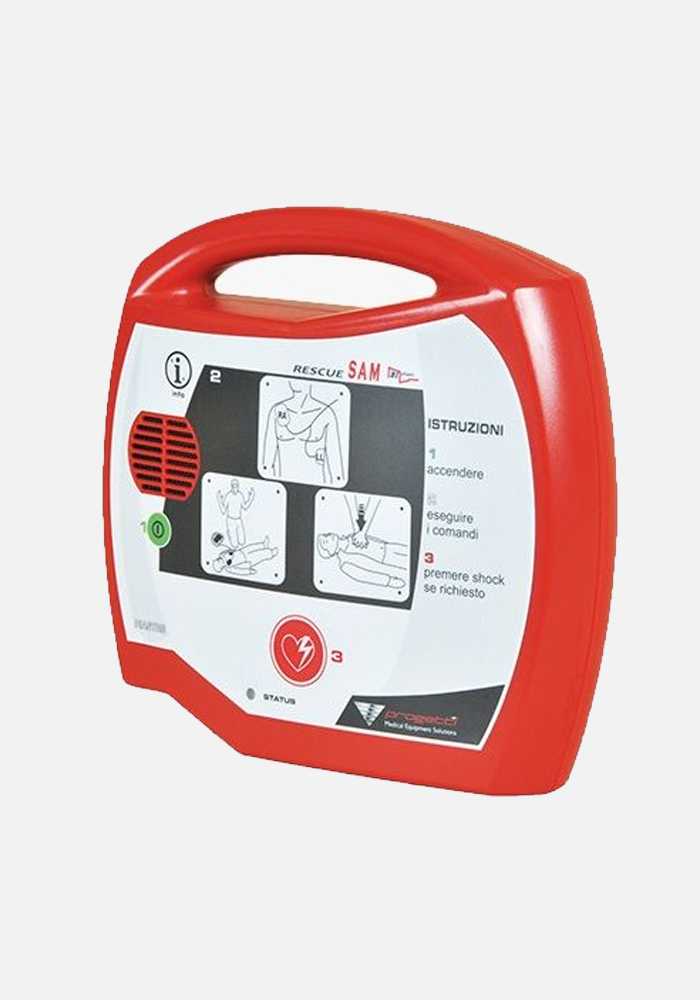

Progetti Rescue Sam AED Defibrillator With Carrying Case

Defibrillator RESCUE SAM is a semi-automatic external defibrillator designed for providing simple and direct voice prompts and indications for a straightforward rescue operation. It is lightweight and battery powered for maximum portability. RESCUE SAM is designed to treat Ventricular Fibrillation (VF) and Fast Ventricular Tachycardia (VT)

According to ERC 2020 guidelines

OPERATING MODE: semi-automatic

WAVEFORM: BTE (biphasic truncated exponential type);

impedance compensated

ENERGY: 200J fixed as new norms ERC 2015

- adult: nominal 200 J into a 50 Ω load

- infant/children: less than 50J using optional attenuated pediatric pads

SHOCK ENERGY ACCURACY: According to IEC EN60601-2-4

PROTOCOL: voice prompts and indicators guide user through

protocol

PACEMAKER: detection and rejection

CHARGE CONTROL: automatic by software (arrhythmia detection system and

charging control), Analysis time: about 6 seconds

CHARGE TIME FROM “SHOCK ADVISED”: <6 seconds, typical with new

battery

VOICE INSTRUCTIONS: detailed voice messages guide responder through use

of the defibrillator

CONTROLS: shock button, info-button, On/Off button

INDICATORS: LEDs (different colors), info-button

CHARGE COMPLETE INDICATOR:

- Voice prompts (press the shock red button)

- Flashing red shock button

DISARM: once charged, the RESCUE SAM disarms if:

- The SHOCK button is not pressed within 15 seconds after being

 armed, or

- The Power ON/OFF button is pressed to turn OFF, or

- The defibrillator pads are removed from the patient or the pads

 connector is disconnected

SHOCK DELIVERY: shock is delivered if the SHOCK button is pressed while the

defibrillator is armed

SHOCK DELIVERY VECTOR: via adult defibrillator pads in the anterior-anterior

(Lead II) position or via reduced-energy pediatric pads in the anterior-posterior

position

PATIENT ISOLATION: type BF

BATTERY: 12 Volt DC, 4.2 Ah, lithium manganese dioxide, disposable long-life

BATTERY CAPACITY: min.200 shocks or 4 hours of operating time continuous

AUTOMATED AND USER-ACTIVATED SELF-TESTS:

- Daily Self-tests: tests internal circuitry, waveform delivery system,

 battery capacity, and software.

- Battery Insertion Test: upon battery insertion, extensive automatic

 self-tests and user-interactive test check device readiness.

DATA RECORDING AND TRANSMISSION:

- Dedicated interface to download data

- Optional special battery pack for data transmission

- Data stored: first 60 minutes of ECG and the entire incident’s events

 and analysis decision.

CLASS OF PROTECTION: IP 54 (dust/water)

SIZE: 80x300x270 mm

WEIGHT: 2.2 kg with battery pack installed.

Standard set:

- main unit

- disposable defi pads adult

- disposable battery pack
